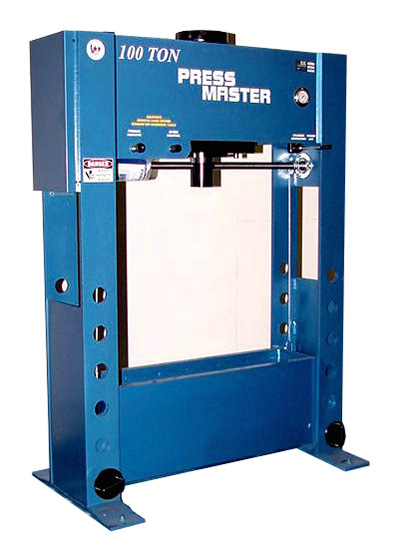

Model: HFP-100
Type: Electric Over Hydraulic H-Frame
Capacity: 100 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 100 Tons
Stroke………………. 12″
Bore………………… 8″
Advanced Speed……….. 20″ IPM
Return Speed…………. 26″ IPM
Distance Between Posts… 42”(R to L)
Distance Between Posts… 13”(F to B)
Max. Dist. from bed-Ram.. 33″
Motor……………….. 5 HP – 230V – 1 Phs
Dimensions…(HxWxD)….. 90″ x 62″ x 50″
Weight………………. 2400 Lbs
EQUIPPED WITH:
Double Acting Cylinder – Permits Pulling & Pressing
Hydraulic Power Lift Table
Electric/Hydraulic Operation
Heavy Duty Steel Structure
Open Sides To Facilitate Work On Long Pieces
Flat Ram Nose
Cylinder Activation Is Fingertip Controlled
Self Locking Table
(10) Gallon Hydraulic Oil Reservoir
Low Pressure Hydraulic System
OPTIONAL ACCESSORIES: P.O.R.
Foot Pedal-Electric Solenoid Valve
Adjustable Stroke Control W/Foot Pedal
V-Blocks
Pressure Regulator – Limits Ram Pressure
Front Safety Guard
18” Stroke Cylinder
24” Stroke Cylinder
COMMENTS: Mfg In The U.S.A.
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
