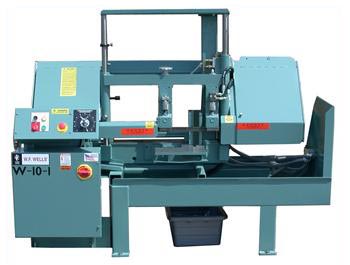

Model: W-10-1
Type: Double Column – Semi-Automatic
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round
At 90 Degrees… 10”
At 45 Degrees… 7-1/2”
Rectangle
At 90 Degrees… 10”x17”
At 45 Degrees… 10”x7-1/2”
Work Height……….. 26”
Blade Size………… 1”x.035”x11’-11”
Blade Speed(V.S.)….. 60 – 425 SFPM
Motor Size………… 5 HP-208/460V-3 Phs
Weight……………. 1400 Lbs
EQUIPPED WITH:
Double Column w/Linear Bearings (For Maximum Capacity & Rigidity)
Miter Cutting
“Semi-Automatic” Cut Cycle Saw Frame Returns To “Top Position” Automatically
Variable Blade Speeds
Adjustable Hydraulic Feed Force w/Monitor (30-120 LBS)
Automatic Shut Off At End Of Cut
Low Voltage – Overload Protection
1” Bi-Metal Blade
Manual Vise
Power Blade Brush
Manually Blade Tension w/Indicator
Flood Coolant System
All Safety Guards
Operation & Parts Manuals
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Casters (Changes Work Height To 29-1/2”)
Automatic Length Stop Assembly
20”(W) x 48”(L) Discharge Table w/Stock Stop
Work Light
Manual Air Vise
Blade Break Switch
6” Wide Roller Stock Stand
12” Wide Roller Stock Stand
High Speed AC Drive (400-3000 SFPM)
6’ Centers – Free Standing Roller Stock Conveyor
18” x 5’ x 2500 LBS Capacity
18” x 10’ x 5000 LBS Capacity
COMMENTS: Mfg. In U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part !
Have a Technical Question !
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
