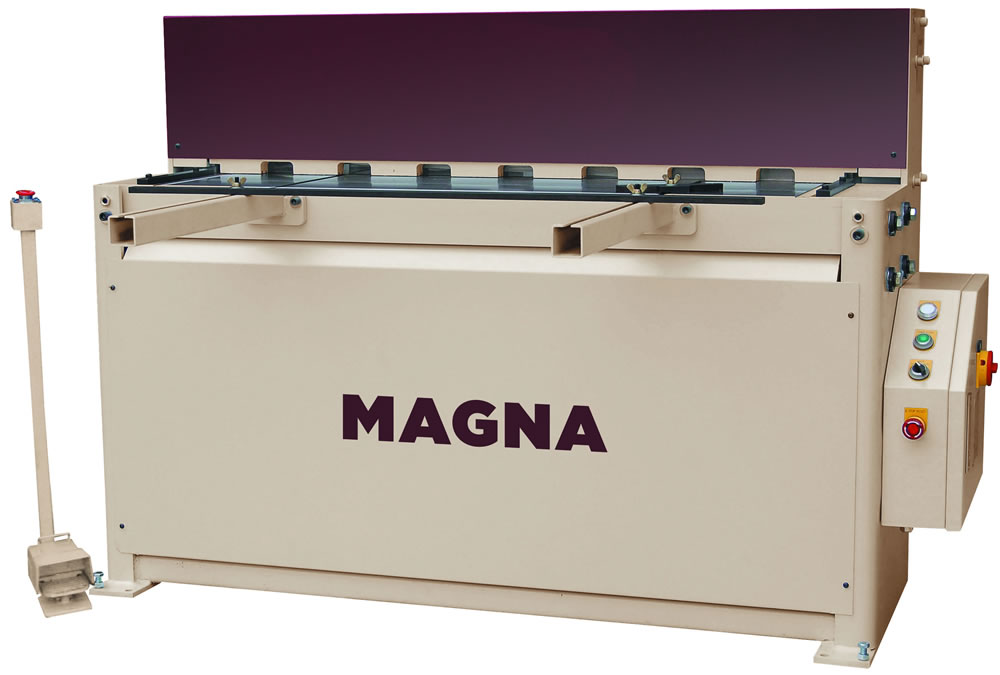

Model: HS-0810M
Type: Hydraulic
Year: New
SPECIFICATIONS:
Length of Cut:……….. 98”
Max. Thickness of Cut:… 10 GA
Strokes per Minute:…… 14-18
Throat Depth:………… 16″
Blade Rack Angle:…….. 1.5 Deg
Motor Size:………….. 7-1/2 HP – 220/440V – 3 Phs
Weight:……………… 5,650 Lbs
CAPACITIES:
Mild Steel ………….. 10 Ga
Stainless …………… 14 Ga
EQUIPPED WITH:
Heavy Duty All Steel Construction
Quiet Hydraulic System
Full Length Viewable Finger Guard
Hi-Carbon-/Hi-Chrome Blades
26” Manual Back Gauge
60” Squaring Arm W/Inlaid Inch-Metric Dual Scale
Work Light W/Shadow Line
(2) 24” Front Support Arms
(2) Edge – Top Blades
(4) Edge – Bottom Blades
(2) 14” Side Gauges W/Inlaid Inch/Metric Dual Scale
Spring Hold Downs
Removable Safety Foot Pedal
Tool Box W/Tools
COMMENT:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus,Ohio
TERMS: Check w/Order
All prices subject to change without notice
