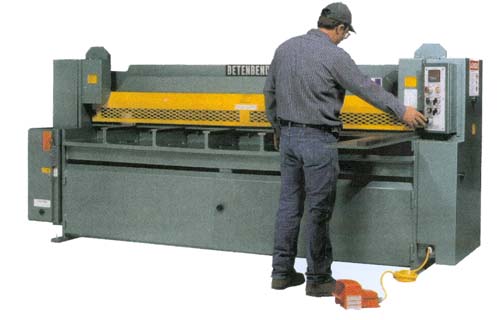

Model: 125-14
Type: Hydraulic
Year: New
SPECIFICATIONS:
Length of Cut:……….. 172”
Max. Thickness of Cut:… 10 ga
Strokes per Minute:…… 24 SPM
Motor Size:………….. 10 HP-220/440V-3 Phs
Weight:……………… 18,000 Lbs
Dimensions (LxWxH)……. 196″ x 74″ x 60″
SHEARING CAPACITIES:
Mild Steel ………….. 10 ga
Stainless …………… 14 ga
Aluminum ………….. 3/16”
EQUIPPED WITH:
36” Power Backgauge w/LED Readout
4′ Squaring Arm w/Inlaid Scale
Light Beam Guage
Hydraulic Self-Compensating Hold Down Bar Assembly
Manual Swing-Up Backgauge
Knive (4) Cutting Edges
Hour Meter
Disconnect Switch
Operation & Parts Manuals
MACHINE FEATURES:
American Made Motor
NEMA Electrics
Power Adjust Variable Rake
All Steel Construction
OPTIONAL ACCESSORIES (P.O.R.):
NC Control (5) Station “Go To” Positioner
(2) 48″ Support Arms (Front Gauges)
(2) Inlaid Scale (0 – 48″)
Disappearing Stops (Support Arms)
Solid Table Top – Bolt on Segments
Machined Solid Table Top Bed
Neoprene Hold Down Caps
One Shot Lubrication
Automatic Lubrication
Oil Cooler
Ball Transfers
Angle Guages
Electronic Stroke Control
Continuous Stroke (Includes Stroke Counter)
Stroke Counter
Independent Hold Down Control
Extra Foot Pedal w/Keylock Switch
Extended Squaring Arm (4′ Standard)
Flip Up Stops (Squaring Arm)
Left Hand Squaring Arm
Dove Tail or T-Slots
Keylock Switch
Increase HP (Increase Stroke)
Power Blade Gap Adjustment
Pneumatic Sheet Support
208V
Gap Type Machine (Slitting)
Special Paint Color
Other Electrics & Motors
Bolt/Shim Kit for Leveling
Crating Charges
Power Lift
Automatic Power Lift
Extra Lenght on Blades
CNC Backgauge
COMMENTS: Mfg. In The U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
