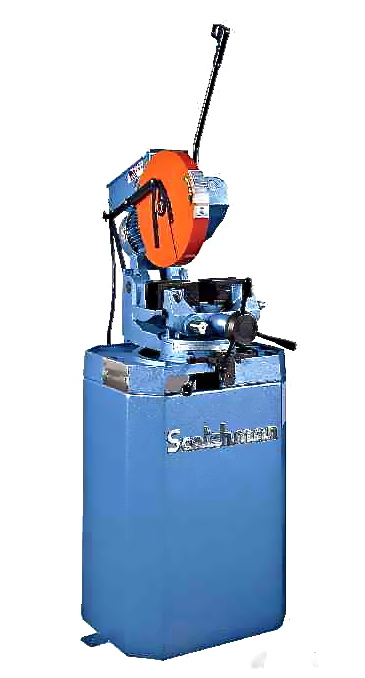

Model: CPO 275-HTPK
Year: New
Type: Non-Ferrous (Air Powered Vise)
SPECIFICATIONS:
Blade Size…………. 10-3/4”
Motor Size…………. 1.5 HP – 230/460V – 3 Phs
Arbor Speed………… 60/120 RPM
Max Cutting Capacity… 45 ÌŠ ……….. 90 ÌŠ
Round:
Solids:……….. 1” ……….. 1-1/2″
Tubing:……….. 3-3/8” ……. 3-3/8”
Square:
Solids:……….. 1” ……….. 1-1/2”
Tubing………… 2-5/8” ……. 3”
Rectangle:
Tubing………… 2-5/8” x 2”… 3” x 2-3/8”
Vise Opening……….. Air Powered
Weight…………….. 600 Lbs
STANDARD EQUIPMENT:
Manual Double Self-Centering Vise
(2) Cutting Speeds
(10) Gallon Coolant Tank
(1) Gallon Coolant
(1) Blade Wrench
30″ Material Length Stop
MACHINE FEATURES:
Air Powered Vise
Miters 45 Degrees Left & Right
Miter Locking Devise
Operator On/Off Trigger Switch
Steel Stand
Warranty: (12) Months (Parts)
OPTIONAL ACCESSORIES AVAILABLE
Square Tube/Diagonal Vise Jaws
Universal Clamping Fixture
Vise Pressure Regulator
Mag Brush
10’ Material Supply Track
20’ Material Supply Track (2) Prices
60” Material Stop Track (RT or Lt)
120” Material Stop Track (RT or Lt)
Dual Palm Buttons
10-3/4” Blade
PACKAGE:
(4) 10-3/4” Blades
(1) 10’ Material Supply Track
(1) 10’ Material Stop Track
Set of Diagonal Vise Jaws
Mag Brush (Chip Removal)
COMMENTS: Mfg. In USA
“USA” DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
TERMS: Check w/Order
All prices subject to change without notice
