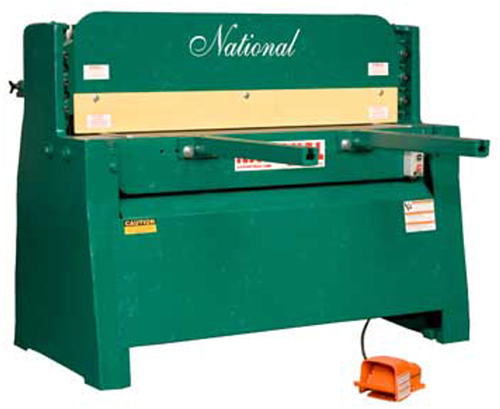

Model: NH-9625
Type: Hydraulic
Year: New
SPECIFICATIONS:
Length of Cut:……….. 96”
Max. Thickness of Cut:… 1/4”
Strokes per Minute:…… 12 SPM
Motor Size:………….. 7.5 HP-220/440V-3 Phs
Weight:……………… 7000 Lbs
Dimensions (LxWxH)……. 116″ x 38″ x 60″
SHEAR CAPACITIES:
Mild Steel ………….. 1/4”
Stainless …………… 1/8″
Aluminum ……………. 1/2″
EQUIPPED WITH:
(4) Edge … Hi Carbon – Hi Chrome Blades
Cast Iron Construction
Hydraulic Hold Downs (Rubber Inserted)
Quick Adjusting Back Gauge
(2) “Front” Support Arms
Foot Switch
Table Gauges
Work Light
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
60” Squaring Arm
Front Operated Digital Back Gauge
COMMENTS: Mfg in The U.S.A.
NOTE: “Hydraulic Overload” Protection Prevents Operator From Harming Shear Should Operator “Mistakenly” Attempt to Cut 5/16” or Thicker Material.
