Model: 500-13
Type: Hydraulic
Year: New
SPECIFICATIONS:
Length of Cut ……….. 157”
Max. Thickness of Cut … 1/2”
Strokes per Minute …… 8 SPM
Throat Depth ………… 5.5″
Motor Size ………….. 25 HP – 220/440V – 3 Phs
Weight ……………… 33,100 Lbs
Dimensions (LxWxH) …… 193″ x 88″ x 80″
SHEAR CAPACITY:
Mild Steel………… 1/2”
Stainless…………. 1/4”
Aluminum………….. 3/4”
EQUIPPED WITH:
Front Operated Power Backgauge w/Digital Readout

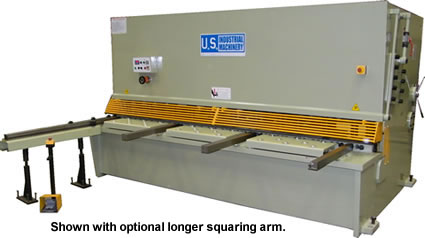

39.5″ Squaring Arm
Shadow Light
Foot Pedal
Hi-Carbon, Hi-Chrome Blades
Bolt On Table Segments w/Ball Transfers
(3) Front Support Arms
Material Support
Material Drop Chute
Stroke Counter
MACHINE FEATURES:
“Swing Beam” Design – 65,000 PSI
“Quick Change” Manual Blade Gap Adjustment
Pressure Sensing, Neoprene Padded Hold Downs
Hydraulic Overload Protection
Electrick Stroke Adjustment
Blade Guarde w/Micro Switch
Control Console
OPTIONAL ACCESSORIES (P.O.R.):
6′ Squaring Arm
8′ Squaring Arm
10′ Squaring Arm
Pneumatic Sheet Lift
48″ Backgauge
“CNC” Programmable Touch Screen Control:
A) Blade Gap Adjustment
B) Rake Angle Adjustment
C) Stroke Control
D) (10) Program Storage
E) Manual & Automatic Mode
