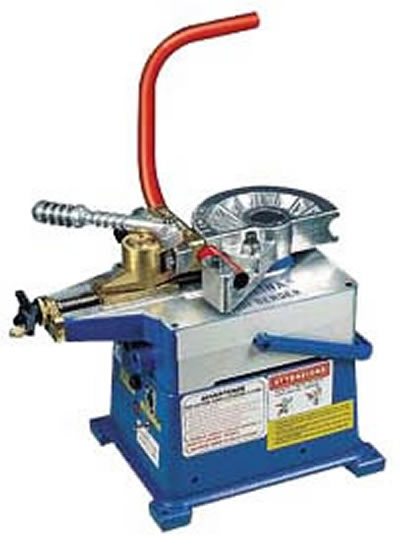

Model: Medibender 070
Year: New
SPECIFICATIONS:
Minimum Diamter…………. 1/4″
Maximum Diameter………… 1-1/4″
Maximum Speed…………… 2.2 RPM
Minimum Centerline Radius… 2 Times Material Dia
Maximum Centerline Radius… 6-7/8″
Bending Capacity………… 0-180 Degrees
Drive Motor…………….. 2 HP-120V-1 Phs
Dimensions…(H,L,W)…….. 18″ x 10″ x 13″
Weight…………………. 100 Lbs
CAPACITIES:
Pipe ……………….. 1″ x Sch 40
M.S. Tube …………… 1-1/4″ x .125″
S.S. Tube …………… 1-1/4″ x .062″
304L S.S. Tube ………. 1-1/4″ x .125″
Round Solids ………… 3/4″
Rect. Solids ………… 3/8″ x 1″
Rect. Tube ………….. 5/8″ x 1″ x .125″
Sq. Solid …………… 3/4″
Sq. Tube ……………. 1″ x .125″
STANDARD EQUIPMENT:
Foot Pedal
Carrying Case
Tool Kit
MACHINE FEATURES:
Portable Bench Top Bender
Programmable Bend Angles w/LED
Programmable Material Spring-Back Compensation
Bends 90Ëš in (6) Seconds
Patented Tooling System w/Multiple Radius Available
Swing Away “Counter-Bending” Die Vise
Tools Mount to Hex Shaped Shaft for Rapid Changeover
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Pipe Tooling Kit
Tube Tooling Kit
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
